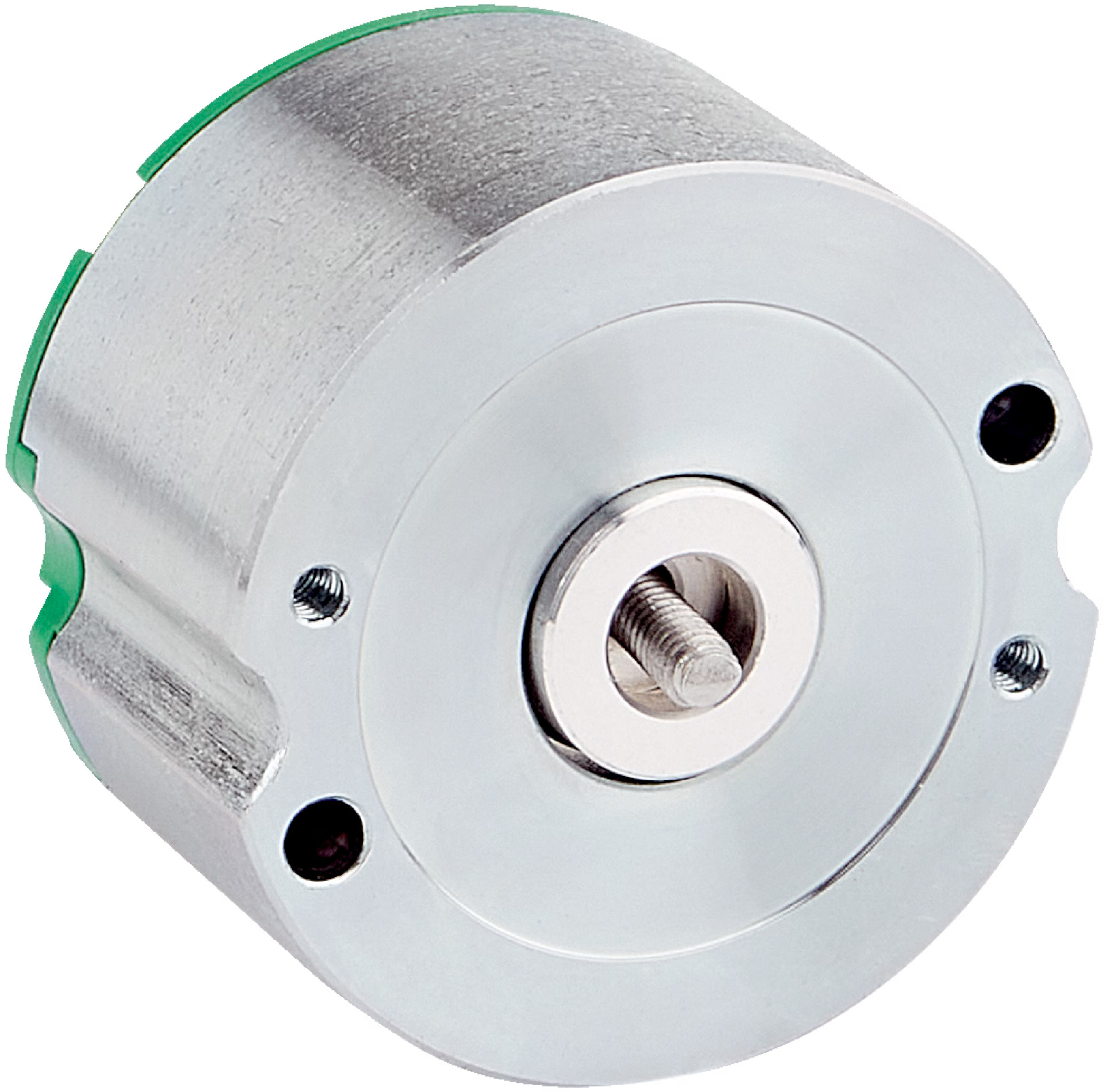

SICK ELS/ELM35 Motor Feedback System Encoder
ELS/ELM35Absolute motor feedback system with BISS C for servo applications
The ELS/ELM35 motor feedback systems offer good performance for rugged servo drives in mobile applications with limited installation space. Digital communication via BiSS C ensures fast data transmission and supports the automated commissioning of the application. Other features of the ELS/ELM35 include the universal attachment design and the reliable and maintenance-free mechatronic multiturn.
Inquiry Form
We will get in touch with you shortly
Description
Description
Benefits
- Highly cost-effective and ideal for standard applications
- Easy operation
- High resilience, even when used in mobile applications
- Suitable for many applications
- Quick and easy mounting
- Also suitable for applications with little installation space
Features
- Efficient and cost-effective data transmission through digital, quick-to-implement BiSS C interface
- Virtually maintenance-free thanks to mechanical, battery-free multiturn gearbox
- Withstands high loads due to rugged housing and large mechanical tolerances of the bearing-free system
- Standardized BiSS C interface, can be integrated in numerous servo motors without additional effort
- Quickly installed with a hex key using the mounting screw already integrated into the device and two housing screws
- 36 mm housing diameter, 22 mm length, and 6 mm diameter blind hollow shaft allow it to be installed even in small servo motors
