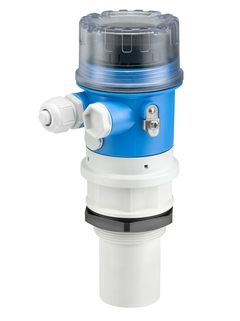

Endress+Hauser Ultrasonic Level Transmitter Prosonic FMU30

Description

Specification:

• Measuring principle

  Ultrasonic

• Characteristic / Application

  Compact ultrasonic transmitter

• Supply / Communication

  2-wire

• Accuracy

  +/- 3 mm or +/- 0,2 % of set measuring range

• Ambient temperature

  -20 °C … 60 °C
  (-4 °F … 140 °F)

• Process temperature

  -20 °C … 60 °C
  (- 4°F … 140 °F)

• Process pressure / max. overpressure limit

  0.7 bar … 3 bar abs
  (10 psi … 44 psi)

• Main wetted parts

  PP/EPDM

• Process connection

  G / NPT 1 1/2″
  G / NPT 2″

• Blocking distance

  1 1/2″: 0.25 m (0.8 ft)
  2″:0.35 m (1.15 ft)

• Application

  Application

• Max. measurement distance

  Max. measurement distance

• Communication

  4…20 mA

• Certificates / Approvals

  ATEX, CSA C/US, IEC Ex, NEPSI

• Options

  Accessory Enclosed:
  UNI flange 2″ … 4″

• Application limits

  Application limits



Benefits

• Quick and simple commissioning via menu-guided onsite operation with four-line plain text display, 7 languages selectable

• Envelope curves on the on-site display for simple diagnosis

• Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate

• Non-contact measurement method minimizes service requirements

• Installation possible from thread G 1½ or 1½ NPT upwards

• Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
